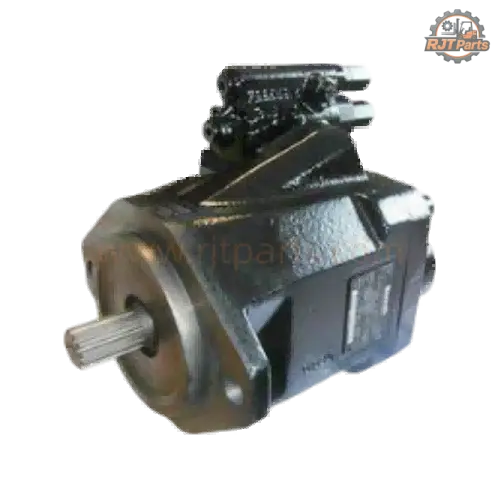

AZ64862 Pump GP Piston Hydraulic Pump for John Deere 3215/3220/3420
The AZ64862 is a John Deere original specification axial piston hydraulic pump replacement designed specifically for the 3215, 3220, 3415, and 3420 series telescopic loaders. It is the core power source of the entire machine’s hydraulic system, responsible for providing high-pressure hydraulic power for lifting, telescopic, and steering operations.
Part Number: AZ64862
Product Name: Pump GP Piston Hydraulic Pump
Compatible Models: John Deere 3215, 3220, 3415, 3420 telescopic loaders
Pump Type: Axial Piston Pump, closed-center, pressure-compensated design
Structural Characteristics: High pressure, high flow rate, high efficiency, suitable for heavy-duty continuous operation
Maximum Working Pressure: 280–300 bar (4060–4350 psi)
Theoretical Displacement: 60 cc/rev (60 ml/rpm)
Rated Speed: 2200–2300 rpm
Maximum Flow Rate: Approx. 132 L/min (at 2200 rpm)
Drive Shaft: Splined shaft Shaft, standard John Deere interface
Purpose: replacement for aftermarket / repair
Origin: China
Functions and Applications
- Main Hydraulic Power: Provides high-pressure hydraulic flow for the boom lifting, boom extension, bucket tilting, and steering systems of forklifts.
- Load Sensing: Works with a closed-center hydraulic system for on-demand oil supply, energy saving, and fast response.
- Heavy-Duty Compatibility: Meets the heavy-duty lifting and continuous high-intensity operation requirements of 3215/3220/3420 models.
Product Features
- Original Quality: John Deere original specifications (ORIG.), dimensions, interface, and performance 1:1 match with the original vehicle, no modification required for installation.
- High Efficiency and Stability: Axial piston structure, volumetric efficiency >95%, low noise, low internal leakage, long service life.
- Durable and Reliable: Reinforced seals and bearings, adaptable to harsh working conditions such as construction dust, bumps, and high and low temperatures.
- Maintenance Friendly: Universal A10V Series structure, easy-to-procure parts, low maintenance costs
Specifications and After-sales Service
- Packaging: Neutral cardboard box/wooden box, moisture-proof and shockproof
- Warranty: aftermarket parts typically 6–12 months
Replacement and Compatibility
- Direct Replacement: Completely replaces the John Deere original AZ64862 pump, no modification to piping or brackets required.
- Universal Replacement: Compatible with A10V060DFR1/52R series piston pumps.
- Applicable Scenarios: New machine assembly, fault repair, hydraulic system upgrades for older equipment.
