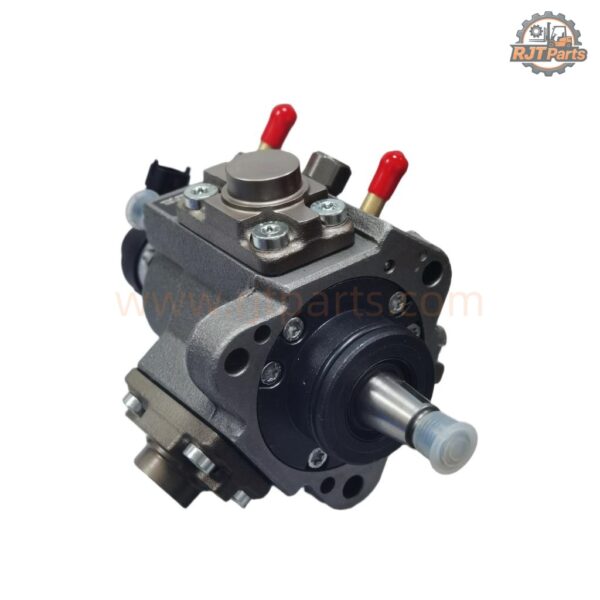

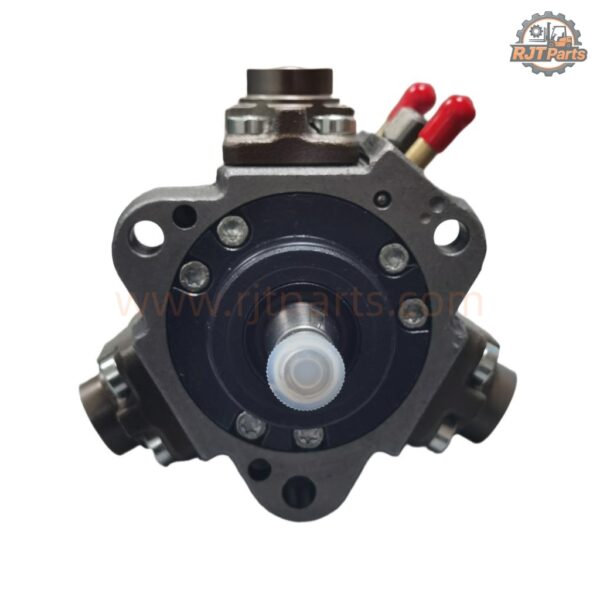

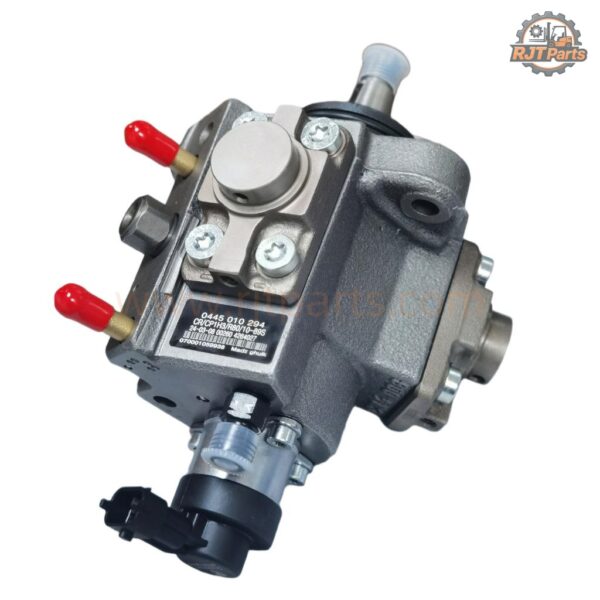

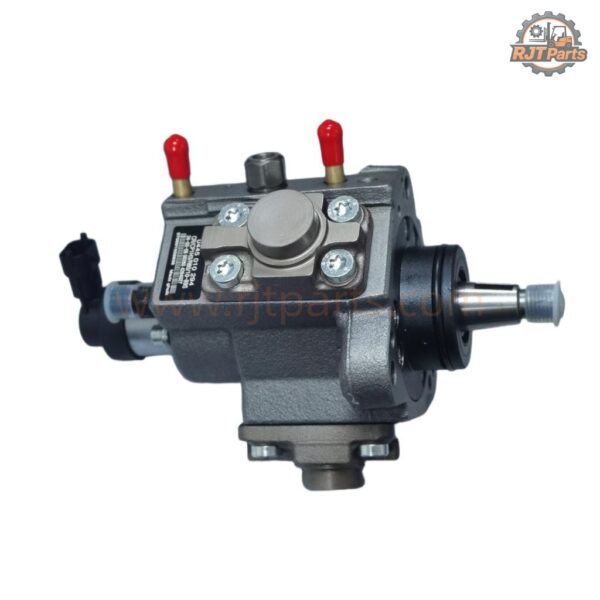

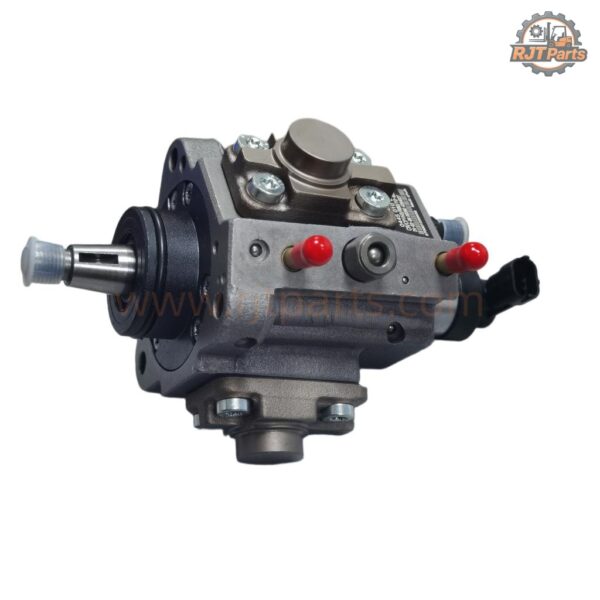

0445010294 2P0130105 Common Rail Fuel Injection Pump
Bosch CP1 series common rail high-pressure fuel pump, model 0 445 010 294 (abbreviated as 0445010294), OEM number 2P0130105 (for Cummins).
This o445010294 product is the replacement for after market for Bosch CP1H3 series radial plunger high-pressure common rail fuel pump. It is an OE grade replacement part for Cummins QSB/ISF series diesel engines. It boasts core advantages such as an ultra-high rail pressure of 1600 bar, precise electronic control, and high reliability, achieving an optimal balance between engine power, fuel economy, and low emissions. It is widely used to commercial vehicles, construction machinery, agricultural machinery, and other fields.
Product Type: replacement for after market
Product Name: fuel pump
Part Number: 0 445 010 294 (0445010294, OE)
OEM Model: 2P0130105 (Cummins original part number), 940807270014
Series: CP1H3 (Radial Piston Common Rail Pump)
Type Code: CR/CP1H3/R70/10-89S
Applicable Fuel: Diesel
Core Technical Parameters
- Value Maximum Working Rail Pressure: 1600 bar (160 MPa)
- Fuel Displacement Approx: 1.0–1.1 cm³/rev
- Drive Speed Range 700–3800 rpm (Rated 1400–3800 rpm)
- Control Method Electronic Metering Unit (MeUN) Closed-Loop Control
- Lubrication Method Fuel Self-Lubricating
- Operating Temperature -40°C ～ +100°C
- Installation Direction Right-hand drive (R70)
Core Product Advantages
1. High-pressure precision fuel supply, superior power and efficiency: A maximum rail pressure of 1600 bar ensures more complete fuel atomization, improved combustion efficiency, stronger power output, and lower fuel consumption.
The electronic metering unit adjusts the fuel supply in real time, ensuring stable rail pressure without fluctuations, adapting to all engine operating conditions, resulting in smooth idling and rapid acceleration response.
2. Original factory quality, durable and reliable: Utilizing high-strength alloy materials and precision machining processes, it withstands high pressure, high temperature, and high corrosion conditions, resulting in a long service life and low failure rate.
The fuel’s self-lubricating design eliminates the need for an additional lubrication system, reducing maintenance points and making it suitable for long-term continuous operation.
3. Original factory matching, strong compatibility: Original factory matching for Cummins QSB 4.5L/6.7L, ISF 3.8L, and other engines, with perfectly matched installation dimensions, interfaces, and control logic; ready to use immediately.
It can directly replace Bosch models 0445010129 and 0445010194, etc., making after-sales replacement convenient.
Compatibility Scope
1. Compatible Engines
Cummins: QSB 4.5L, QSB 6.7L, ISF 3.8L
Others: Agrale-Deutz 8500 E-tronic 3.0, MWM-DIESEL, etc.
2. Compatible Vehicles/Equipment
Commercial Vehicles: Nissan Navara/Frontier/X-Terra, Volkswagen/Mercedes-Benz models equipped with ISF 3.8L engines
Construction Machinery: Komatsu SAA6D107, SAA4D107 series excavators, loaders, etc.
Application Scenarios
- Commercial Vehicle Power Systems: Light trucks, heavy trucks, bus diesel engines
- Construction Machinery: Excavators, loaders, road rollers, forklifts, etc.
- Agricultural Machinery: Tractors, harvesters, and other diesel-powered equipment
- Generator Sets: Cummins series diesel generator sets
Hot Points
- Bosch original quality, mature CP1H3 series technology, stable and reliable performance
- 1600bar High voltage, precise electronic control, powerful performance, low fuel consumption, and excellent emissions.
- Original Cummins component, direct-install compatibility, easy replacement.
- Self-lubricating fuel, simple maintenance, suitable for long-term continuous operation.
- Widely compatible with commercial vehicles, construction machinery, agricultural machinery, and many other fields.
